readme.md

Example gallery

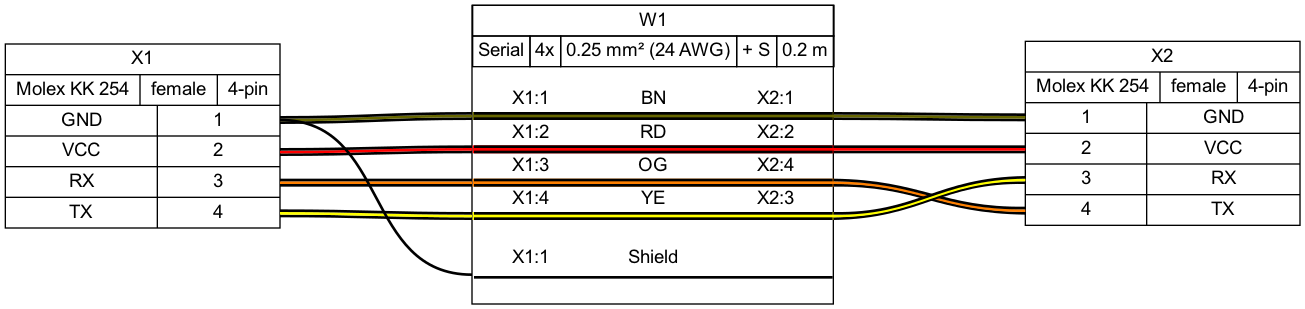

Example 01

Source - Bill of Materials

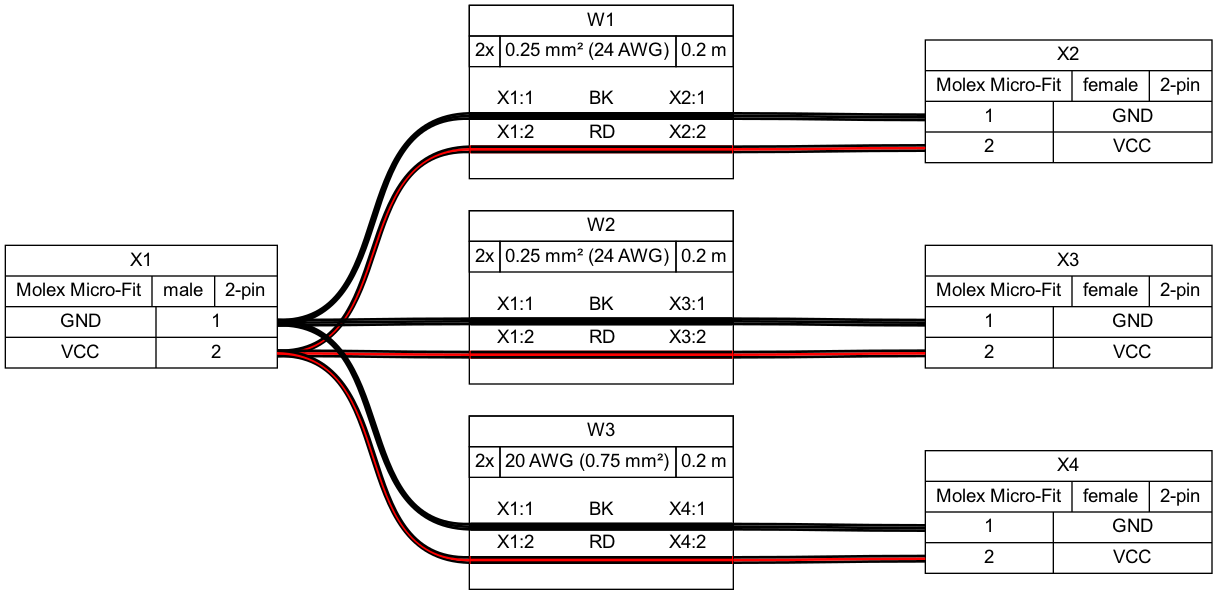

Example 02

Source - Bill of Materials

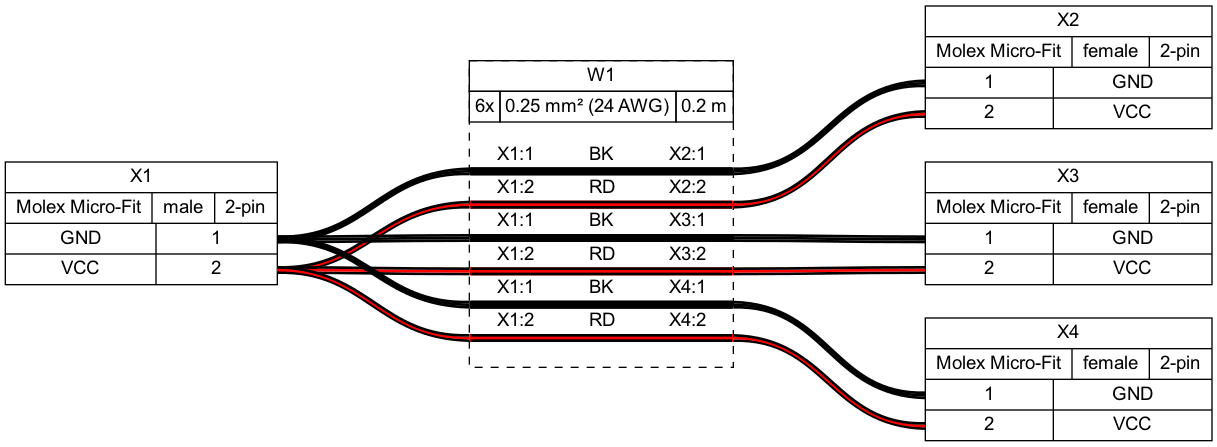

Example 03

Source - Bill of Materials

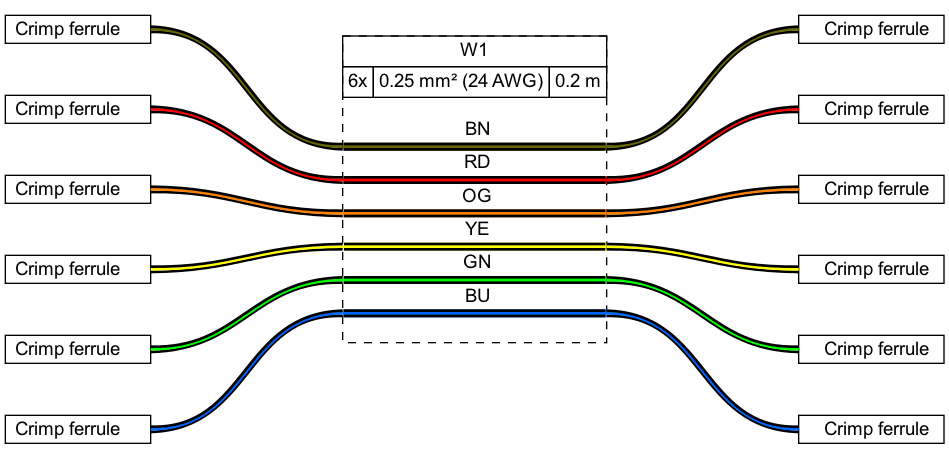

Example 04

Source - Bill of Materials

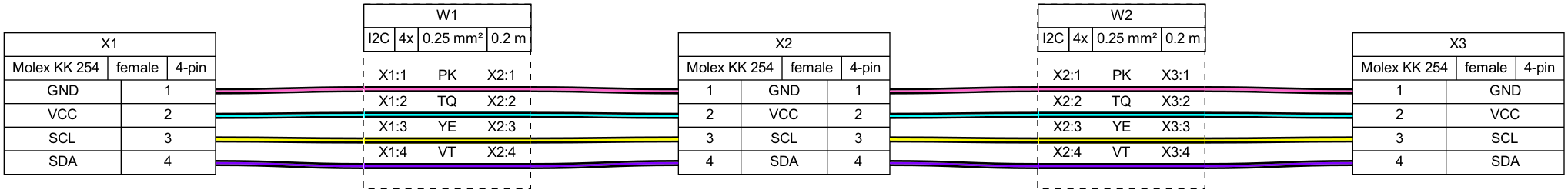

Example 05

Source - Bill of Materials

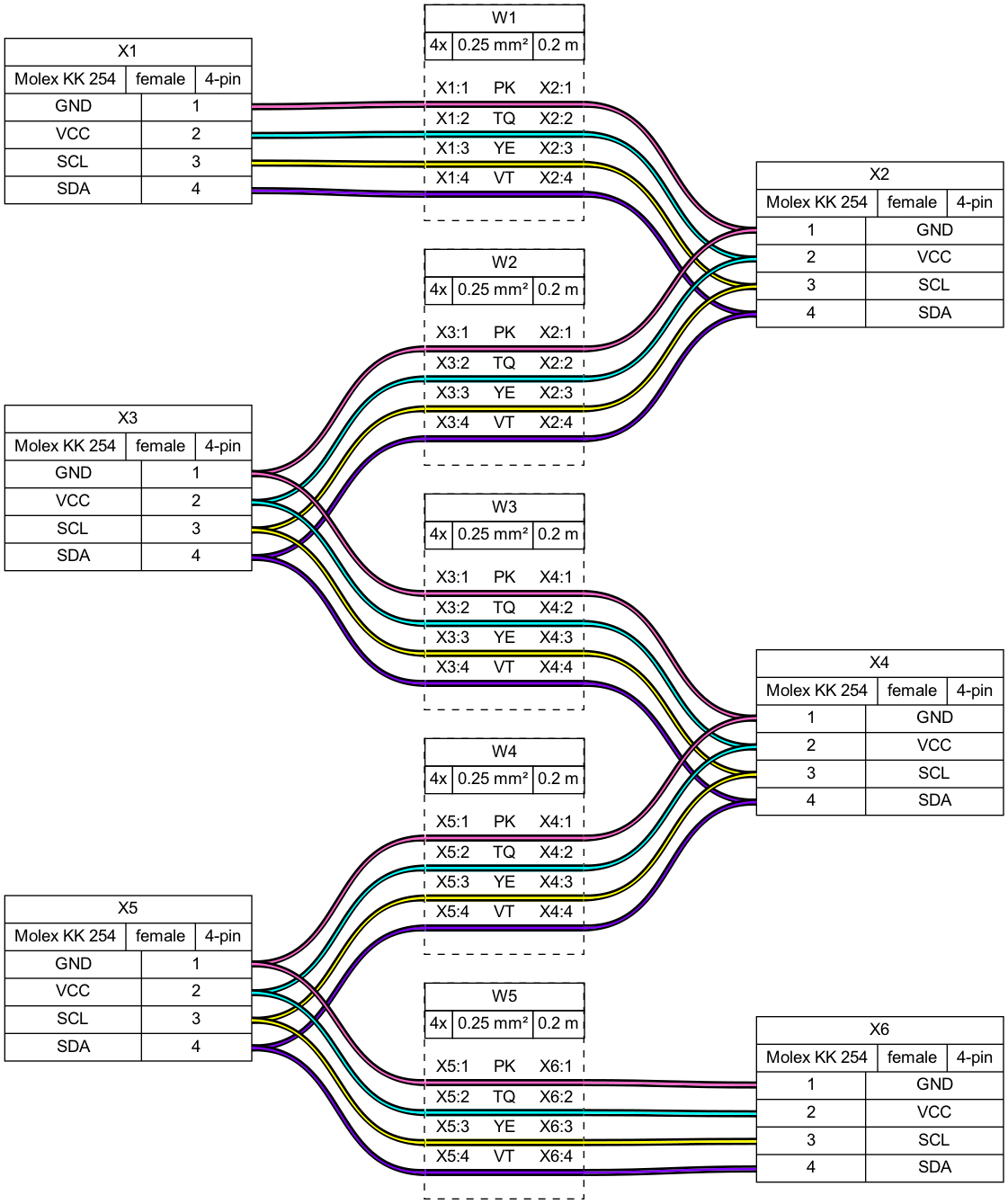

Example 06

Source - Bill of Materials

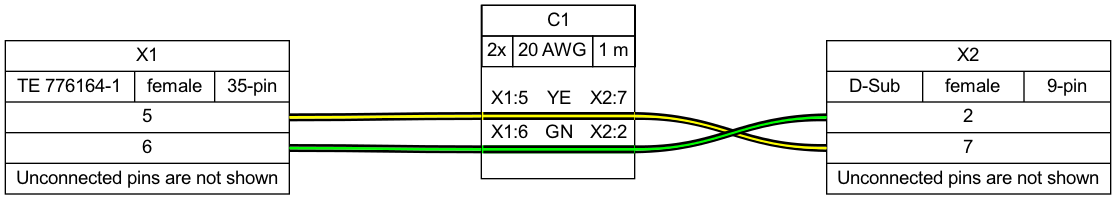

Example 07

Source - Bill of Materials

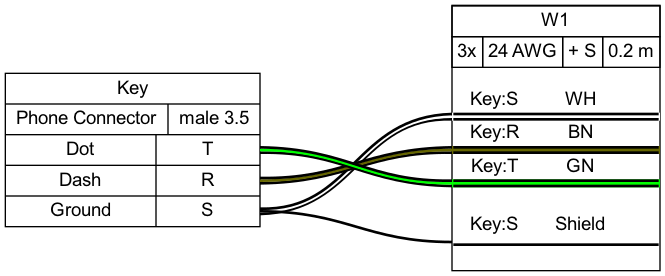

Example 08

Source - Bill of Materials

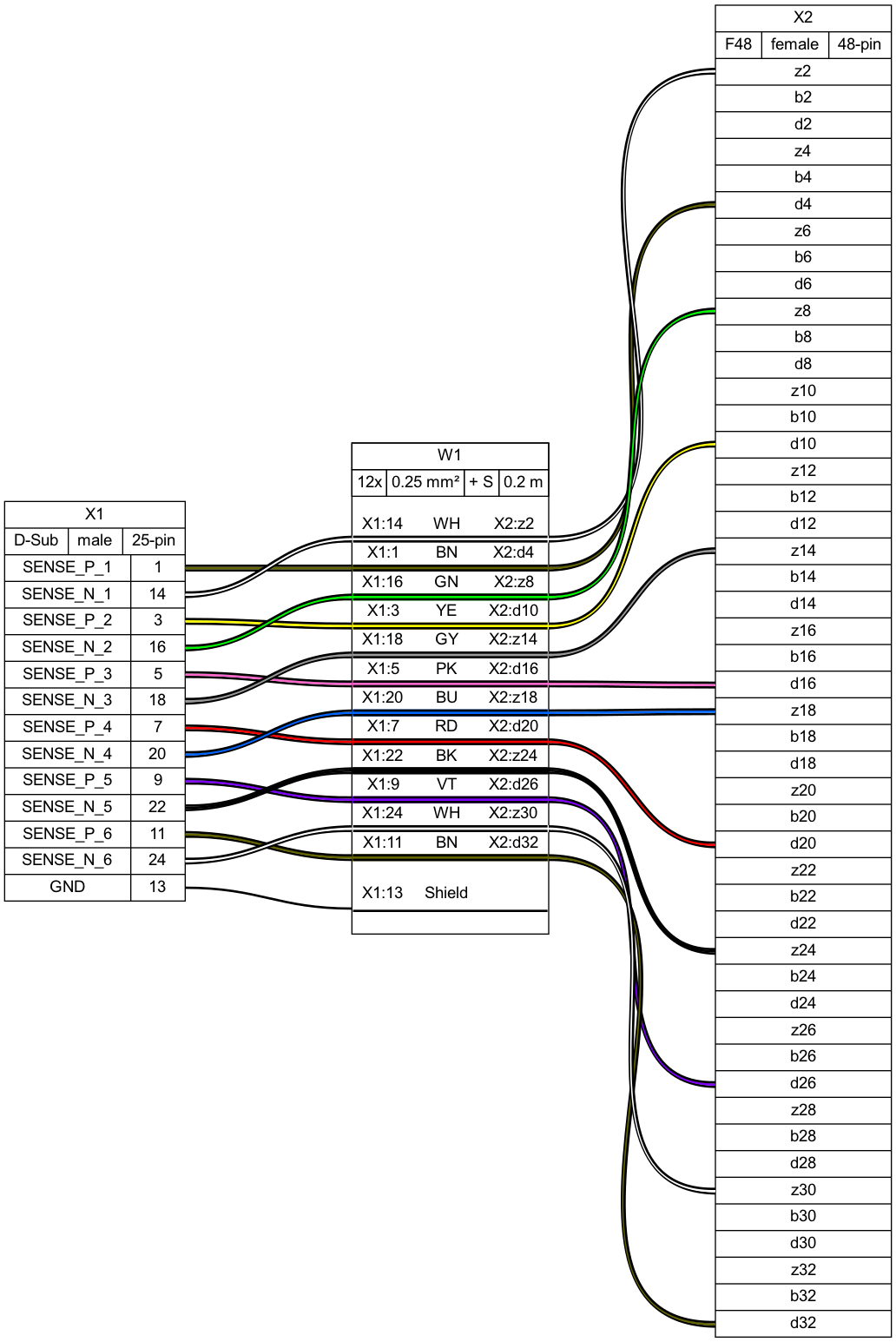

Example 09

Source - Bill of Materials
