WireViz
Summary
WireViz is a tool for easily documenting cables, wiring harnesses and connector pinouts. It takes plain text, YAML-formatted files as input and produces beautiful graphical output (SVG, PNG, ...) thanks to GraphViz. It handles automatic BOM (Bill of Materials) creation and has a lot of extra features.
Features
- WireViz input files are fully text based
- No special editor required
- Human readable
- Easy version control
- YAML syntax
- Understands and uses color abbreviations as per IEC 60757 (black=BK, red=RD, ...)
- Optionally outputs colors as abbreviation (e.g. 'YE'), full name (e.g. 'yellow') or hex value (e.g. '#ffff00'), with choice of UPPER or lower case
- Auto-generates standard wire color schemes and allows custom ones if needed
- DIN 47100 (WT/BN/GN/YE/GY/PK/BU/RD/BK/VT/...)
- IEC 62 (BN/RD/OR/YE/GN/BU/VT/GY/WT/BK/...)
- 25 Pair Color Code (BUWH/WHBU/OGWH/WHOG/GNWH/WHGN/BNWH/...)
- TIA/EIA 568 A/B (Subset of 25-Pair, used in CAT-5/6/...)
- Understands wire gauge in mm² or AWG
- Optionally auto-calculates equivalent gauge between mm² and AWG
- Allows more than one connector per side, as well as loopbacks
- Allows for easy-autorouting for 1-to-1 wiring
- Generates BOM (Bill of Materials)
Note: WireViz is not designed to represent the complete wiring of a system. Its main aim is to document the construction of individual wires and harnesses.
Examples
Demo 01
connectors:
X1:
type: D-Sub
subtype: female
pinout: [DCD, RX, TX, DTR, GND, DSR, RTS, CTS, RI]
X2:
type: Molex KK 254
subtype: female
pinout: [GND, RX, TX]
cables:
W1:
gauge: 0.25 mm2
length: 0.2
color_code: DIN
wirecount: 3
shield: true
connections:
-
- X1: [5,2,3]
- W1: [1,2,3]
- X2: [1,3,2]
-
- X1: 5
- W1: s

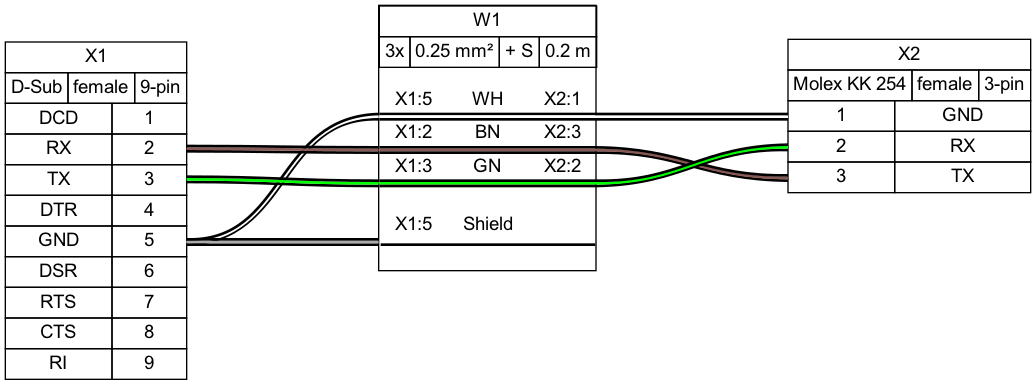

Output file:
Bill of Materials (auto-generated)

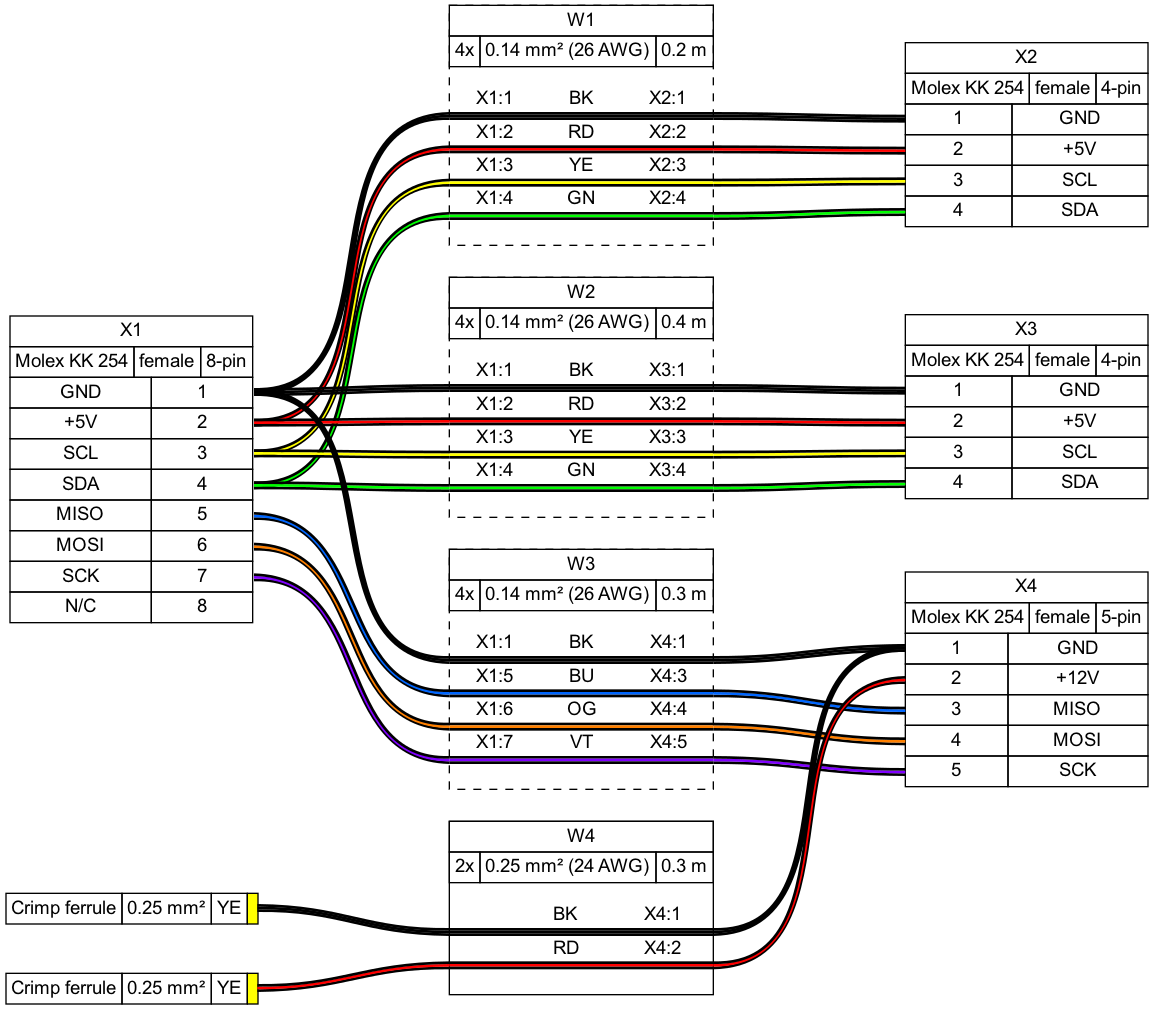

Demo 02
Tutorial and example gallery
See the tutorial page for sample code, as well as the example gallery to see more of what WireViz can do.
Usage
Installation
Requirements
WireViz requires Python 3.7 or later.
WireWiz requires GraphViz to be installed in order to work. See the GraphViz download page for OS-specific instructions.
Note: Ubuntu 18.04 LTS users in particular may need to separately install Python 3.7 or above, as that comes with Python 3.6 as the included system Python install.
Installing the latest release
The latest WireViz release can be downloaded from PyPI with the following command:
pip3 install wireviz
Installing the development version
Access to the current state of the development branch can be gained by cloning the repo and installing manually:
git clone <repo url>
cd <working copy>
git checkout dev
pip3 install -e .
How to run
$ wireviz ~/path/to/file/mywire.yml
This will output the following files
mywire.gv GraphViz output
mywire.svg Wiring diagram as vector image
mywire.png Wiring diagram as raster image
mywire.bom.tsv BOM (bill of materials) as tab-separated text file
mywire.html HTML page with wiring diagram and BOM embedded
Syntax description
A description of the WireViz YAML input syntax can be found here.
(Re-)Building the example projects
If you would like to rebuild all of the included demos, examples and tutorials, use the build_examples.py script:
./build_examples.py
Changelog
See CHANGELOG.md
Status
This is very much a work in progress. Source code, API, syntax and functionality may change wildly at any time.
